NEW SILICONE LENSES for COB LEDs
SIO3 JUNIOR
Diameter: 90mm
Height: from 15.30mm to 35.31mm
The lenses work with COB LEDs having 9mm to 23mm LES
Lens material: Silicone
Holder material: PC and Aluminium
|
|

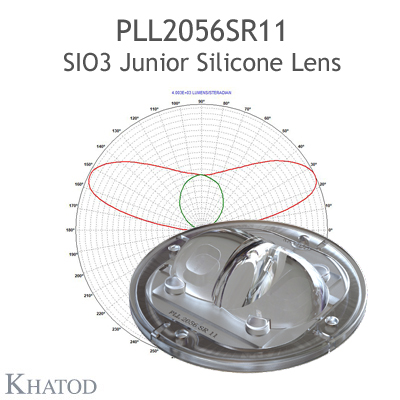

TYPE I
Diameter: 85.09mm - Height: 22.14mm
Full angle at 50% from maximum: ~ 110° x 160°
|
|

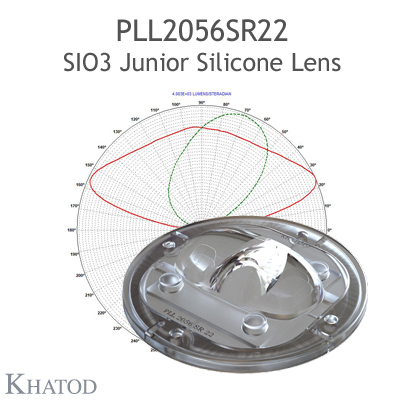

TYPE II
Diameter: 85.09mm - Height: 19.30mm
Full angle at 50% from maximum: ~ 110° x 160°
|
|

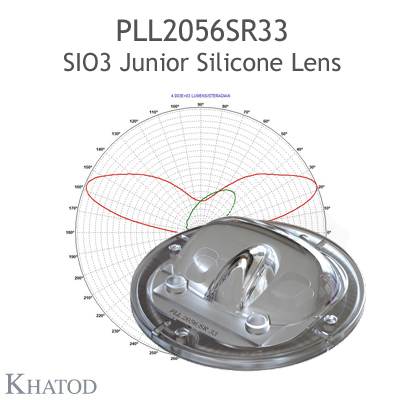

TYPE III
Diameter: 85.09mm - Height: 23.28mm
Full angle at 50% from maximum: ~ 75° x 160°
|
|

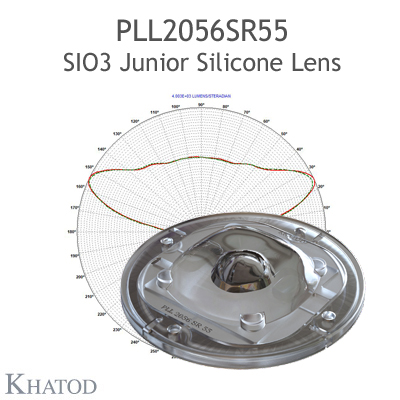

TYPE V
Diameter: 85.09mm - Height: 15.30mm
Full angle at 50% from maximum: ~ 150° x 160°
|
|

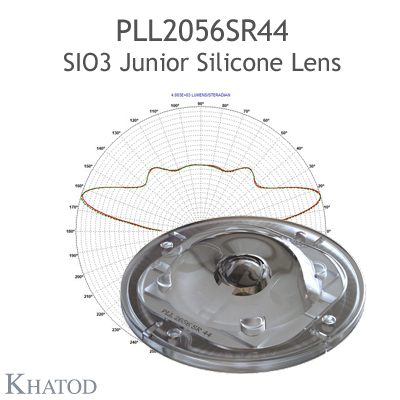

TYPE V Square
Diameter: 85.09mm - Height: 15.30mm
Full angle at 50% from maximum: ~ 125° x 165°
|
|
ECE ME3a - TYPE II
Diameter: 85.09mm - Height: 21.33mm
Full angle at 50% from maximum: ~ 70° x 135°
|
|
60° FWHM
Diameter: 85.09mm - Height: 24.00mm
Full angle at 50% from maximum: ~ 60°
|
|
90° FWHM
Diameter: 85.09mm - Height: 16.76mm
Full angle at 50% from maximum: ~ 90°
|
|

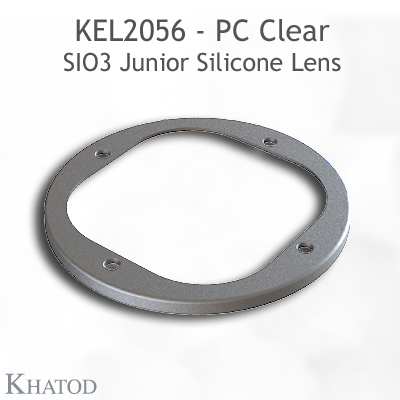

Diameter: 89.98mm - Height: 4.45mm
Holder material: KEL2056 Clear PC, KEL2056/01 Black PC, KEL2056ALU Aluminium
|
|
